HD48-Hs               HD510-Hs

Working Area (XYZ)      1300*2500*250mm      1600*3200*300mm

Spindle Power                   3 kw /24000 RPM Water Cool (ER20)

Work Speed                  Mechanically Developed (Equal to Servo)

Drive System                        Advanced Micro Stepping Drive

Motor System                  High Torque Stepper Motors & Drives

Control System                  PCI Online For Windows XP / DSP

Transmit (X-Y)                  Gear Rack & Pinion(Atlanta-German)

Z-Transmit                        Hiwin / THK / PMI/AMT Ball Screws

Linear Guides                High Precision Square (Hiwin / PMI/THK)

Accuracy                                      0.01mm / 1000 mm

File Format                       G code, *.u00, *.mmg, *.plt /HPGL/NC

Structure                               Welded Frame TATA Steel

Table Surface                      High Torque T-Slot Aluminum Bed

Operating Voltage                AC 230V 50/60Hz, Single Phase

Weight                                  1200kgs               1700kgs

HD48-Hs & HD510-Hs

SRI DATTA UNIVERSAL TECHNOLOGIES

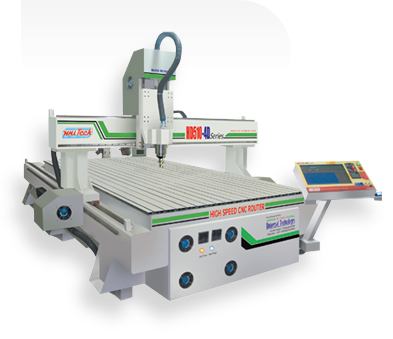

High Speed CNC Wood Carving Router
